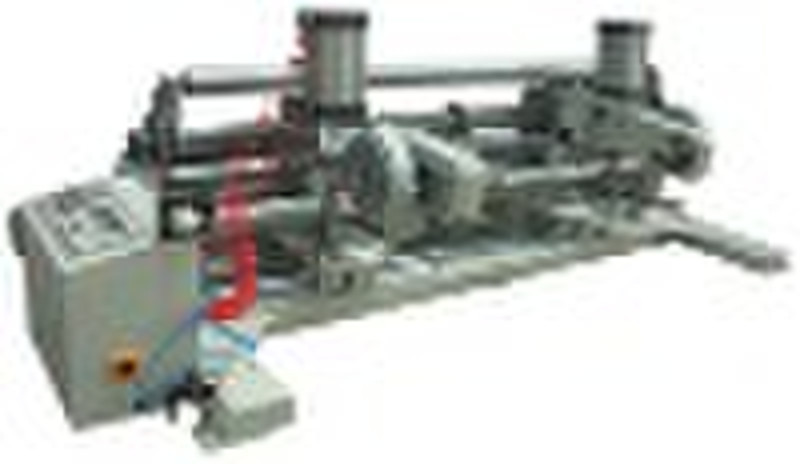

unwinder device for cutting machine

Application:This unwinder device apply to unwind continues roll of paper, plastic film, aluminum foil and insulated material, which is the ideal assembled settings for slitting machine and coating machine.Feature1. Compact structure, higher mechanization, large load capacity, flexible function. 2. Each mechanical arm fix one flange type air shaft to ensure the same angle of arms. The shaft connected with two arms is driven by two motors which could turn on only one or both, so material is loaded easily to reduce intensity of labour. 3. Large torque, magnetic powder and automatic tension control system ensure simply operation. 4. Automatic axis set up. 5 Use section steel, plastic spraying on the frame. Main technical parameter ItemParametersMax. width(mm)1000130016002100Rewind width(mm)6001100Max. unwind Diameter(mm)1200Material Weightkg1000Max. rewinding diameter (mm)600Diameter of Core mm76mm (3)DimensionsL×W×H cm310×110×100310×140×100310×170×100310×220×100Weightkg1000120014001700
