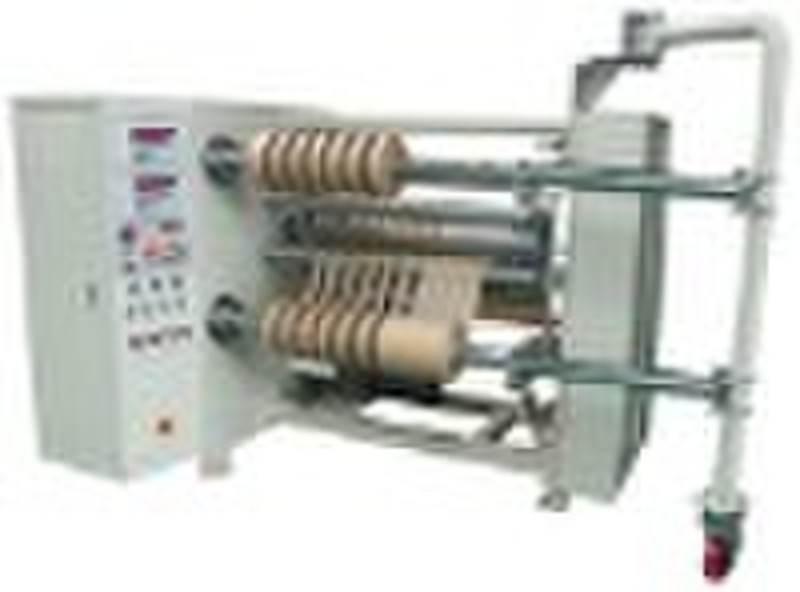

YM04C slitting machine(medical glue fabric)

Application: This slitting machine used to divide and cut the roll of medical glue fabric into tapes then gets the strips rolled up Features: 1) Compact structure, simple operation, reliable function and strong adaptability 2) Release tension is controlled by the electronic tension adjusting system to meet different requirements 3) Can stop automatically with figure displaying meter and yard machine 4) Different transmitting speed available 5) High release accuracy because of optical-electrical hydraulic correction system 6) Rewinding can be done from top to the bottom or by single tape 7) Round or razor blade slitting main technical parameters: ItemParameterMax. width (mm)130016002000Min. slitting width (mm)over than 50Max. unwinding diameter(mm)700Max. rewinding diameter (mm)50Rewinding speed (m/min)5 120Power supply (KW)45Edge adjustment accuracy(mm)≤±1.5Dimensions(L×W×H) (cm)190×220×140190×220×140190×220×140Weight (kg)
